9071735 Pusher Assy Pilot Valve Fits Hitachi EX100 EX100M EX100W EX100WD EX1100 EX120 EX150 EX160WD EX200 EX200K EX220

Brand Name : SUNCAR

Model Number : 9071735 Pusher Assy

CertifiC-A-Tion : ISO9001

Place of Origin : CN

MOQ : 100 sets

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : 550 Sets Per Week.

Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)

Packaging Details : PP Bag Inside,Carton Box Outside.

Brand : SUNCAR

MOQ : 10 sets

Transport : By air, by sea, by express ( FedEx , UPS，DHL,TNT etc.)

Packaging Type : Single piece

After-sale service provided : Online Support

Name : Pusher Assy Pilot Valve

operation type : Construction Device

Compatible Model : HITACHI

AppliC-A-Tion : Excavator

Model : EX100 EX100M EX100W EX100WD EX1100 EX120 EX150 EX160WD EX200 EX200K EX220 EX270 EX300 EX400 EX50UR EX60 EX60G EX60UR EX700 EX90 RX2000

Contact Now

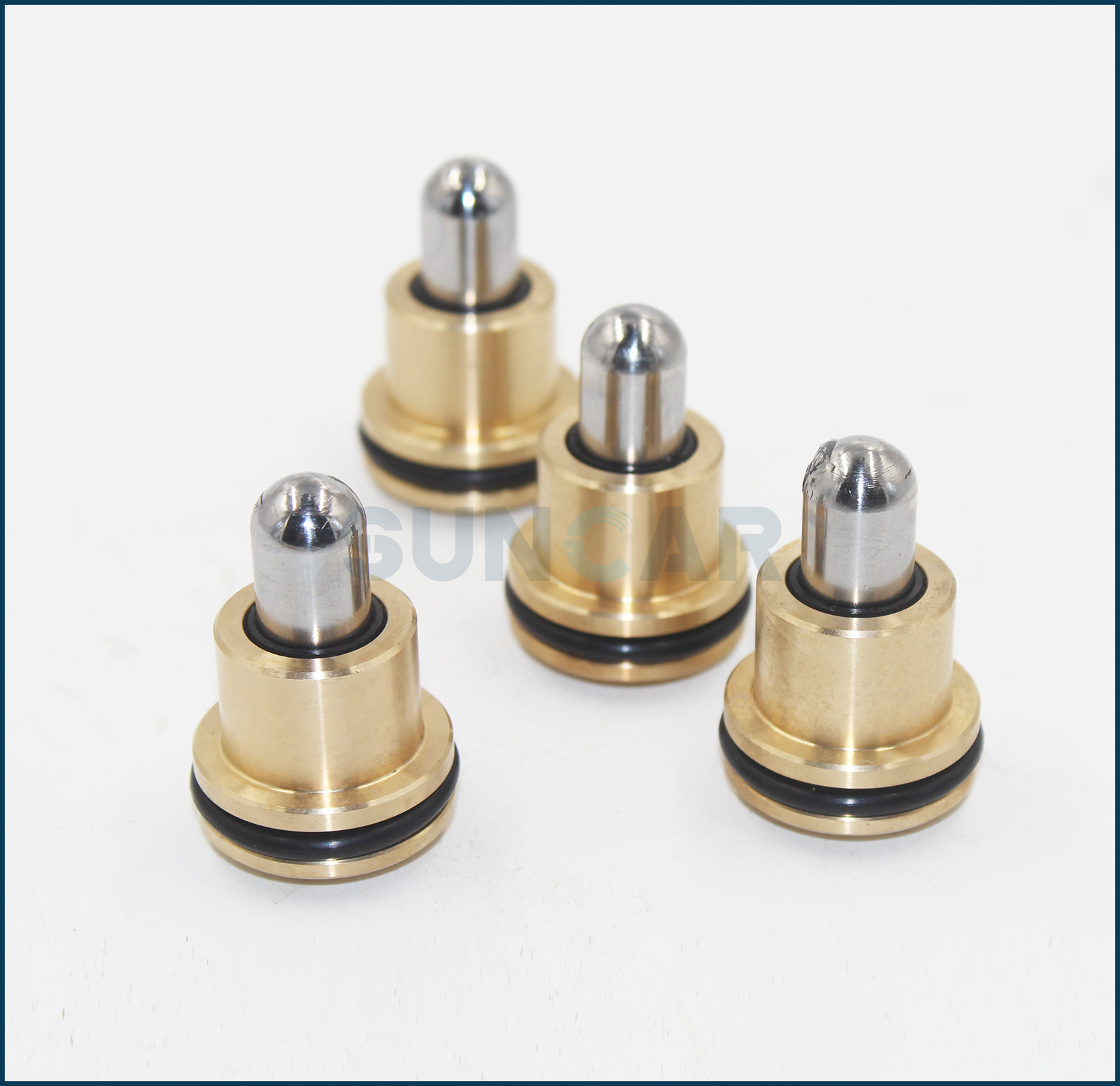

9071735 Pusher Assy Pilot Valve Fits Hitachi



Description:A sleeve valve takes the form of one or more machined sleeves. It fits between the piston and the cylinder wall in the cylinder of an internal combustion engine, where it rotates and/or slides. Ports (holes) in the side of the sleeves come into alignment with the cylinder's inlet and exhaust ports at the appropriate stages in the engine's cycle.



Product name 9071735 Pusher Assy Pilot Valve Fits Hitachi
Brand name SUNCAR
Warranty 6 months from the day of shippment
OEM number 9104360
Loading port Huangpu port,China
Availability Have enough stock for selling
Terms of payments Western Union, T/T, Bank Transfer, Paypal
Original place Guangdong provice,China
AppliC-A-Tion excavator
Delivery time 3-5 days after payment received(public holiday excluded)
Condition 100% New
Compatible equipment HITACHI
Quality High guarantee





Compatible equipment models:



HITACHI
 		 EX100 EX100M EX100W EX100WD EX1100 EX120 EX150 EX160WD EX200 EX200K EX220 EX270 EX300 EX400 EX50UR EX60 EX60G EX60UR EX700 EX90 RX2000

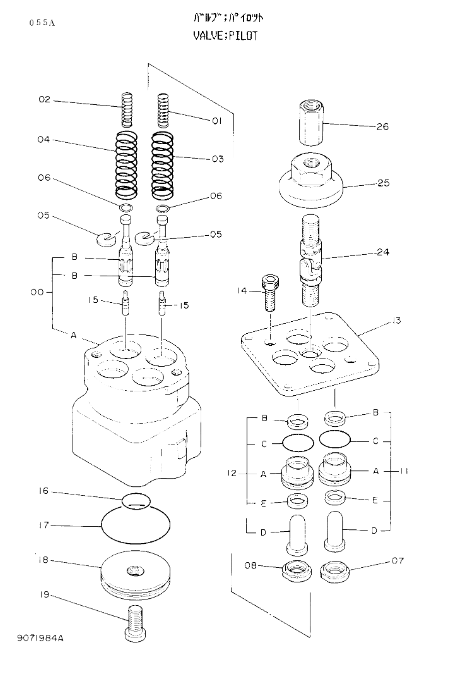

Parts on group PILOT VALVE:

Pos. Part No Qty Parts name
  9071984 [1] VALVE;PILOT
0 7017963 [1] CASING;ASSY
00A. +++++++ [1] CASING
00B. +++++++ [4] SPOOL
1 4201915 [2] SPRING;COMPRES.
2 4166686 [2] SPRING;COMPRES
3 4195421 [2] SPRING;COMPRES.
4 4186544 [2] SPRING;COMPRES.
5 4177777 [4] SPACER
6 4173208 [20] SHIM
7 4179257 [2] GUIDE;SPRING(1,3 Port)
8 4177896 [2] GUIDE;SPRING(2,4 Port)
11 9071735 [2] PUSHER ASSY (1,3 Port)
11 9086456 [2] PUSHER ASSY (1,3 Port)
11 9089809 [2] PUSHER ASSY (1,3 Port)
11A. 3037559 [1] BUSHING
11A. 3047989 [1] BUSHING
11B. 4191490 [1] SEAL;DUST
11C. A810025 [1] O-RING
11D. 3037551 [1] PUSHER
11E. 4187924 [1] SEAL;OIL
11E. 4240151 [1] SEAL;OIL
12 9071736 [2] PUSHER ASSY (2,4 Port)
12 9086455 [2] PUSHER ASSY (2,4 Port)
12 9089808 [2] PUSHER ASSY (2,4 Port)
12A. 3037559 [1] BUSHING
12A. 3047989 [1] BUSHING
12B. 4191490 [1] SEAL;DUST
12C. A810025 [1] O-RING
12D. 3037552 [1] PUSHER
12E. 4187924 [1] SEAL;OIL
12E. 4240151 [1] SEAL;OIL
13 4184930 [1] PLATE
14 4259780 [2] BOLT;SOCKET
14 4259780 [2] BOLT;SOCKET
14 M341025 [2] BOLT;SOCKET
14 M341025 [2] BOLT;SOCKET
15 4184929 [4] PISTON
16 984338 [1] O-RING
17 A810060 [1] O-RING
18 4184954 [1] PLATE
19 M341225 [1] BOLT;SOCKET
24 4183035 [1] JOINT;UNIVERSAL
24 4285209 [1] JOINT;UNIVERSAL
25 4184931 [1] CAM
26 4182067 [1] JOINT;SCREW
